Product Description

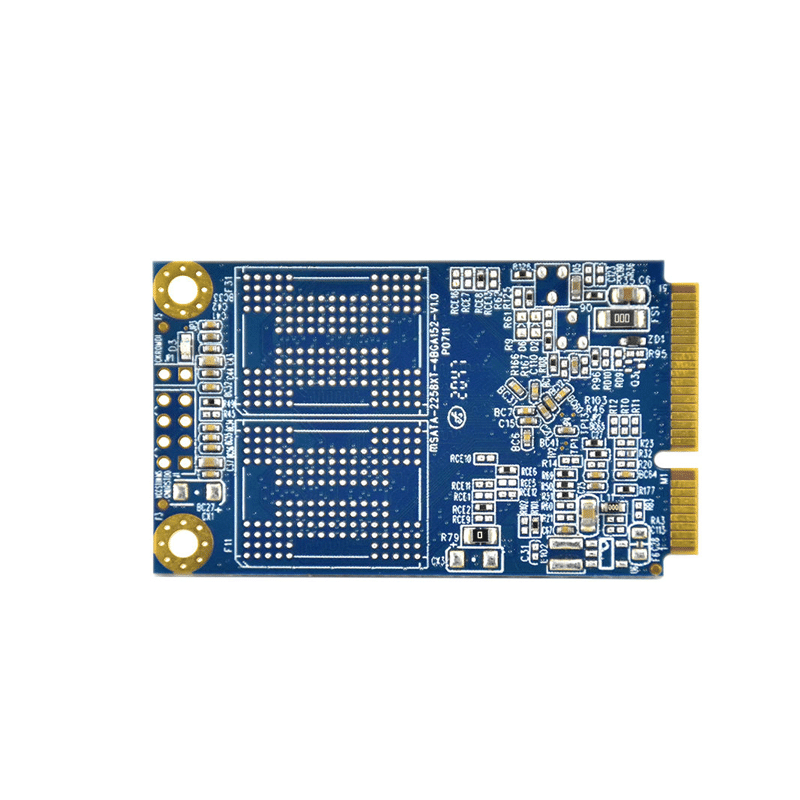

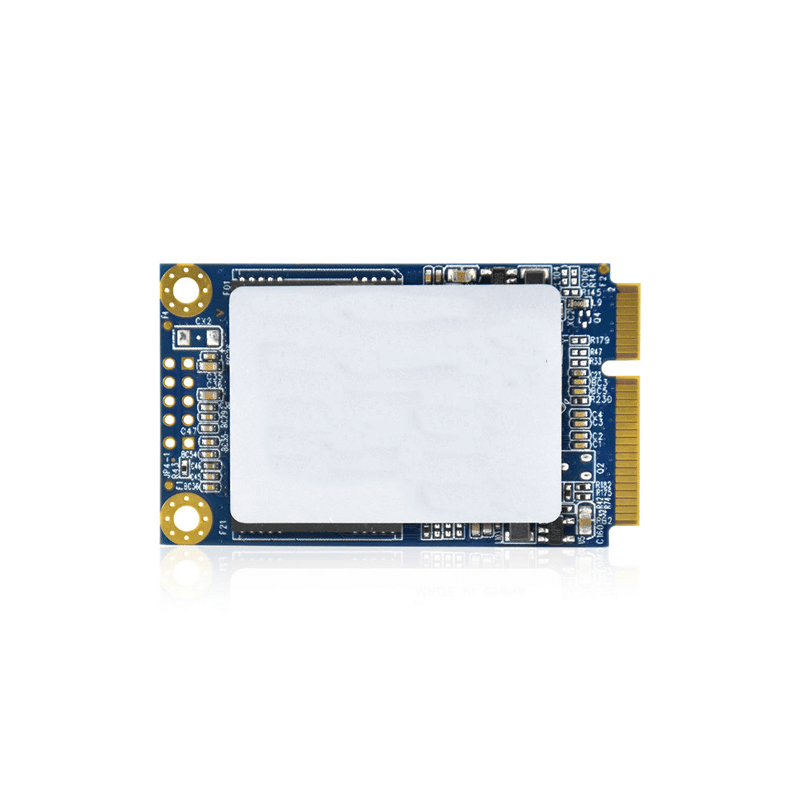

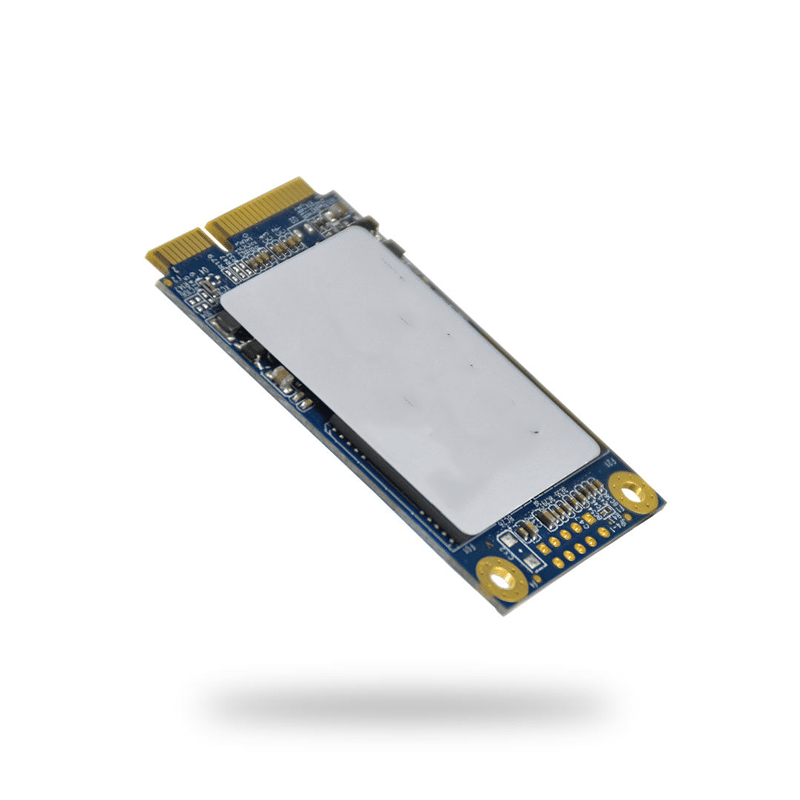

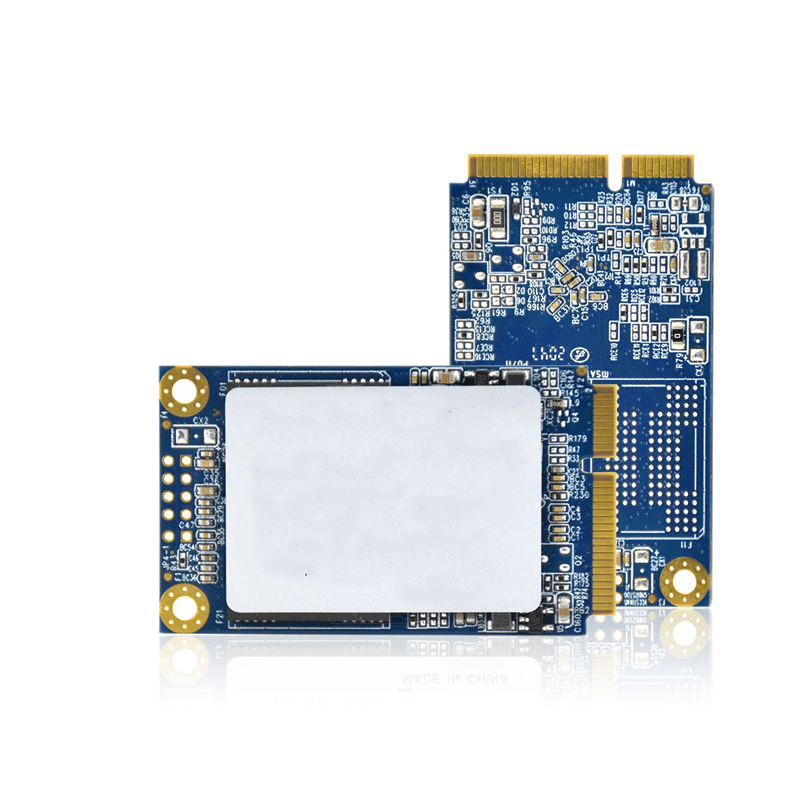

The Target SATA III Internal mSATA High Quality SSD 64GB to 1TB offers a reliable and high-speed internal storage solution for laptops, mini PCs, and embedded systems. Utilizing the SATA III 6Gbps interface, this compact SSD ensures fast boot times, rapid data access, and low power consumption — ideal for system upgrades or new builds that require dependable storage in a small form factor.

Key Features

Compact mSATA form factor, ideal for small devices and laptops
SATA III (6Gbps) high-speed interface for improved system performance
Available in 64GB, 128GB, 256GB, 512GB, and 1TB

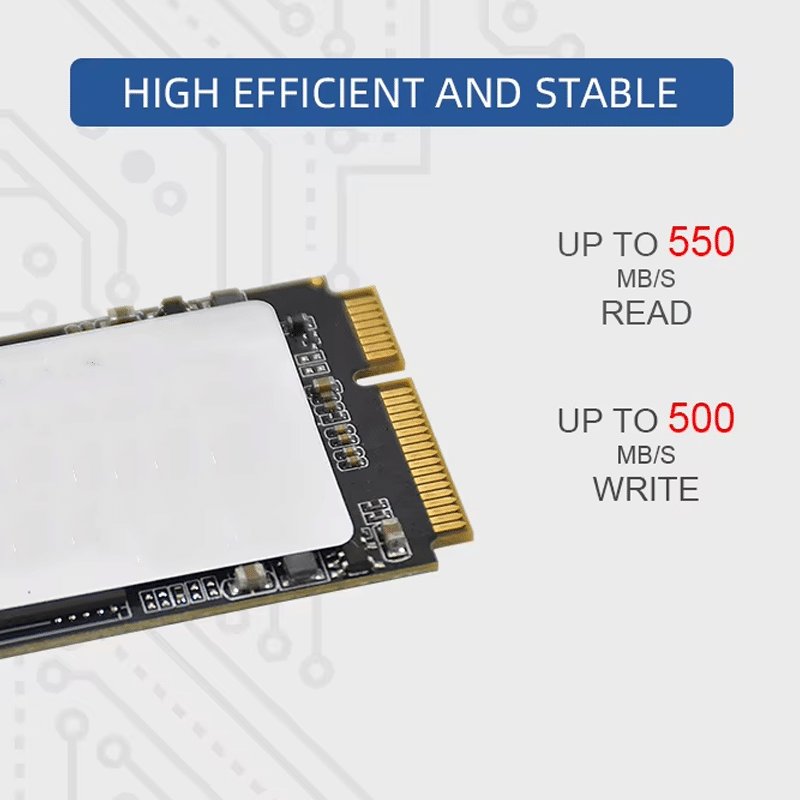

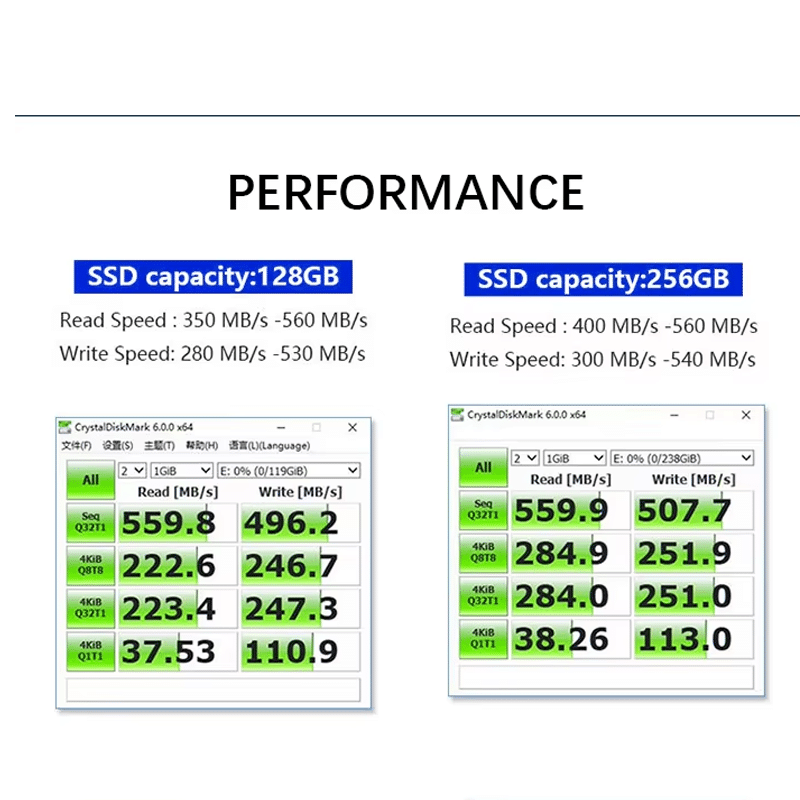

Up to 550MB/s read and 500MB/s write speeds
Low power consumption for energy-efficient performance
Reliable NAND flash technology with enhanced durability
Shock-resistant, silent operation with no moving parts
Ideal for boot drives, upgrades, or embedded applications

Specifications

Specification	Details
Product Type	Internal mSATA Solid State Drive (SSD)
Interface	SATA III 6Gbps
Form Factor	mSATA
Storage Capacities	64GB, 128GB, 256GB, 512GB, 1TB
Max Read Speed	Up to 550 MB/s
Max Write Speed	Up to 500 MB/s
Flash Type	3D NAND Flash
Dimensions	50.8mm x 29.85mm x 4.85mm
Weight	Approx. 7g–9g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
MTBF	1.5 Million Hours
Data Retention	10 years at 25°C
Warranty	3 Years (OEM/ODM options available)
Certifications	CE, FCC, RoHS

Applications

Internal storage upgrades for laptops and mini PCs
Embedded systems and industrial computers
Boot drives for lightweight and fast operating systems
Ideal for thin clients, kiosks, and point-of-sale terminals
Reliable data storage for media and office workloads

View Catalog:

Where to buy high quality SSD from china 2

Target SATA III Internal mSATA High Quality SSD 64GB to 1TB

The Target SATA III Internal mSATA High Quality SSD 64GB to 1TB offers a reliable and high-speed internal storage solution for laptops, mini PCs, and embedded systems.

Categories: Hard Drives, Internal SSD, MSATA SSD, SATA III SSD Tags: 64gb msata sata, boot drive msata, embedded system ssd, high-speed msata internal ssd, industrial msata storage, internal msata ssd, laptop msata upgrade, msata 512gb, MSATA SSD 128GB, msata ssd 1tb, sata iii ssd 6gbps, target msata drive

Description

Specification	Details
Product Type	Internal mSATA Solid State Drive (SSD)
Interface	SATA III 6Gbps
Form Factor	mSATA
Storage Capacities	64GB, 128GB, 256GB, 512GB, 1TB
Max Read Speed	Up to 550 MB/s
Max Write Speed	Up to 500 MB/s
Flash Type	3D NAND Flash
Dimensions	50.8mm x 29.85mm x 4.85mm
Weight	Approx. 7g–9g
Operating Temperature	0°C to 70°C
Storage Temperature	-40°C to 85°C
MTBF	1.5 Million Hours
Data Retention	10 years at 25°C
Warranty	3 Years (OEM/ODM options available)
Certifications	CE, FCC, RoHS
